Reference Capacity
Up to 5,000 trays per hour, subject to tray format, return condition and project configuration.
For egg farms that need reusable plastic trays returned to circulation through a controlled wash-and-handling route.
Plastic Egg Tray Washing

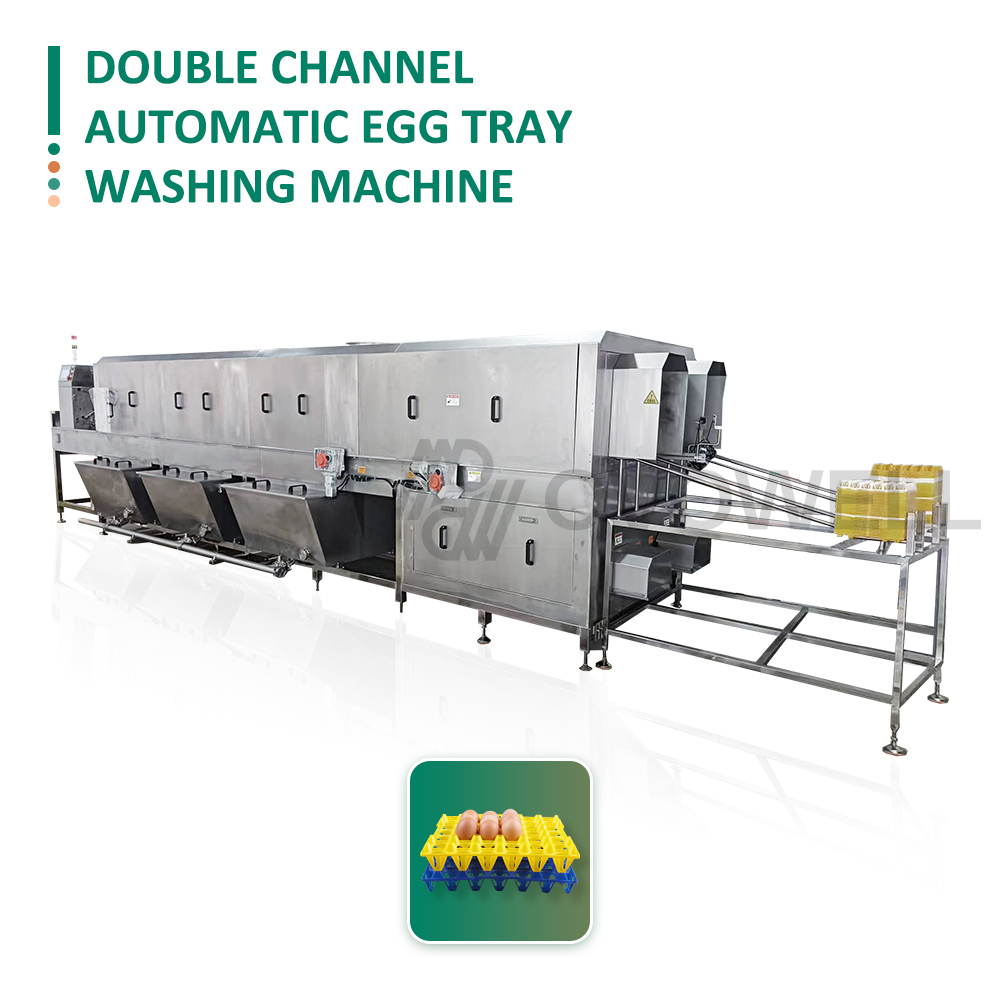

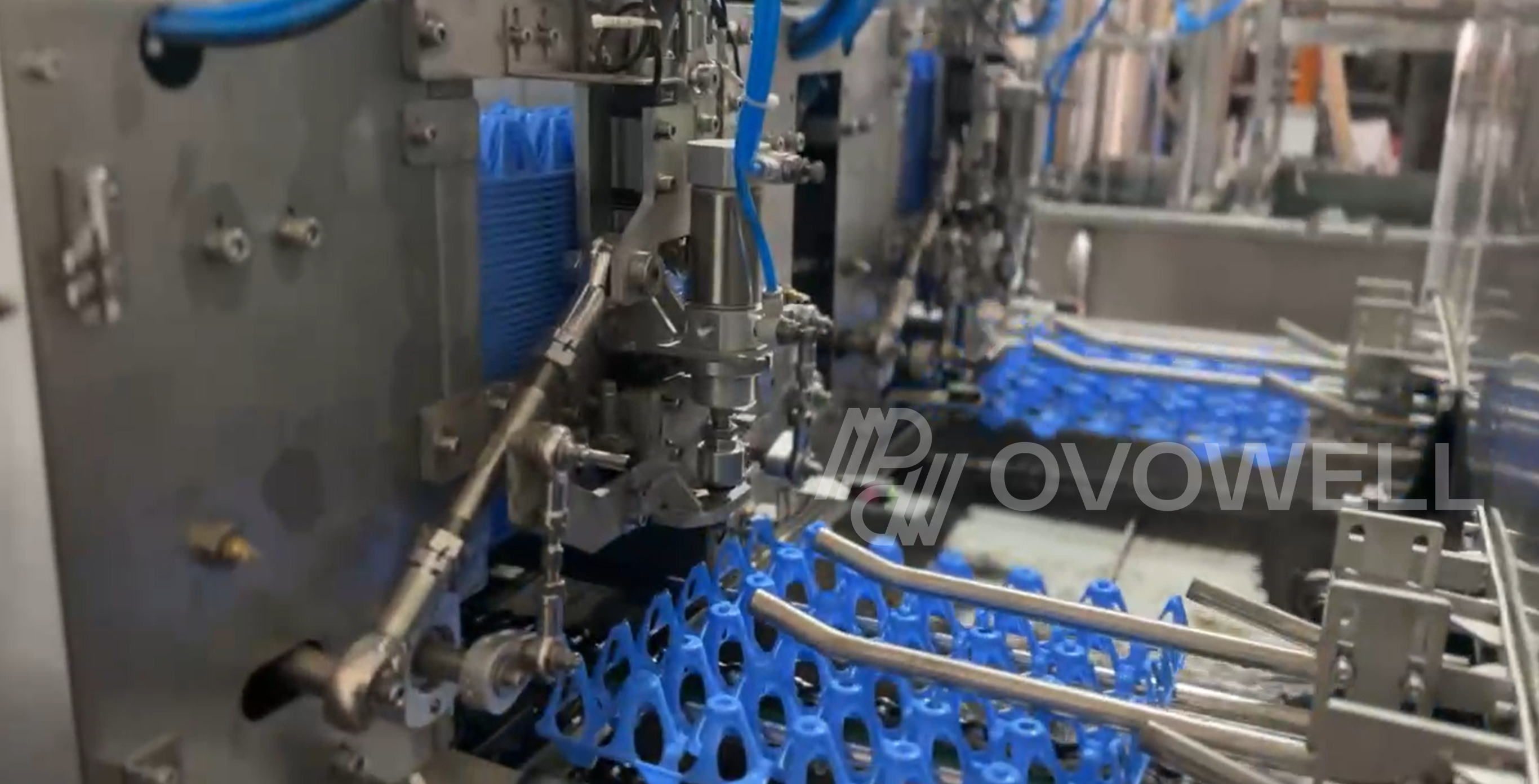

The OVOWELL automatic egg tray washing machine combines tray destacking, optional pre-soaking, high-pressure washing, rinsing, dewatering and automatic stacking for reusable plastic egg trays. Configuration is reviewed against tray dimensions, return condition, target output, water and drainage.

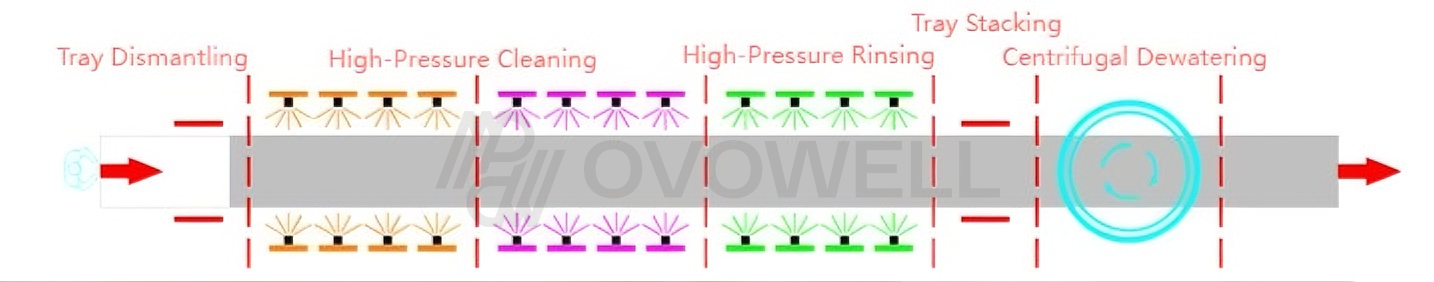

The line is arranged around the condition in which trays return and the level of automation required before and after washing.
Dirty tray stacks are separated and fed into the washing route.
Confirm tray stack and feeding method.

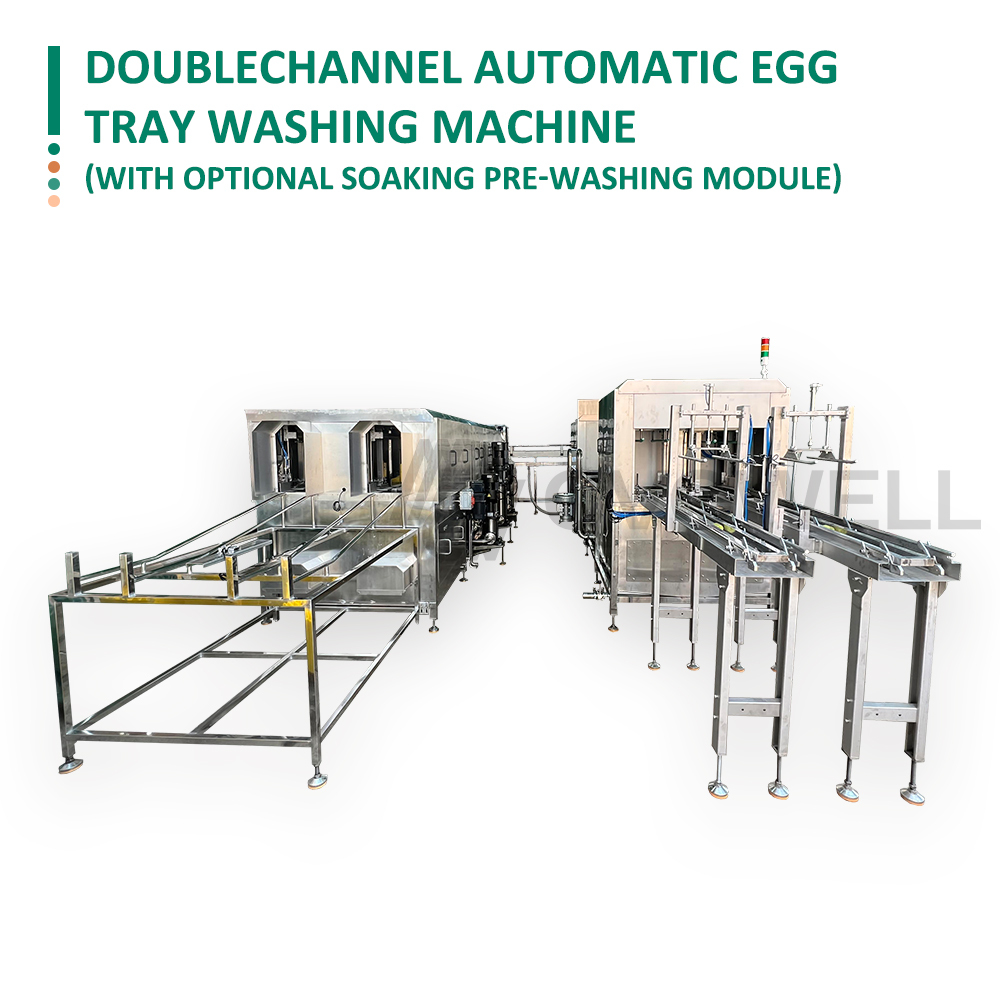

A bubble-agitation pre-soak module can be added for trays that return with more persistent residue.
Confirm soil load and available line length.

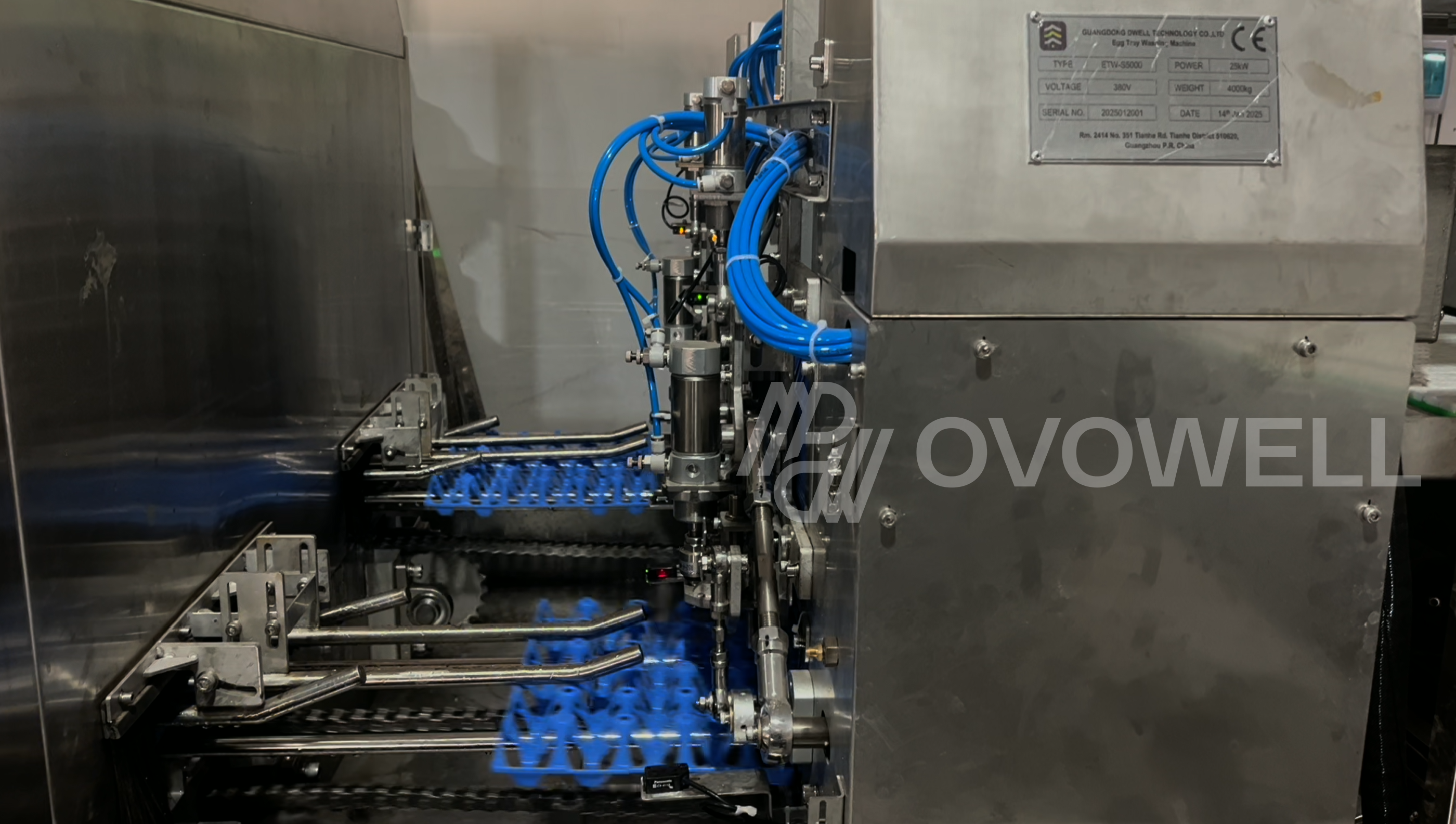

Trays pass through the main washing stage on the conveyor.
Confirm tray geometry and target throughput.
A separate rinse stage follows the main wash.
Confirm water quality and drainage.
Centrifugal dewatering removes residual water before the trays leave the line.
Confirm the required downstream condition.

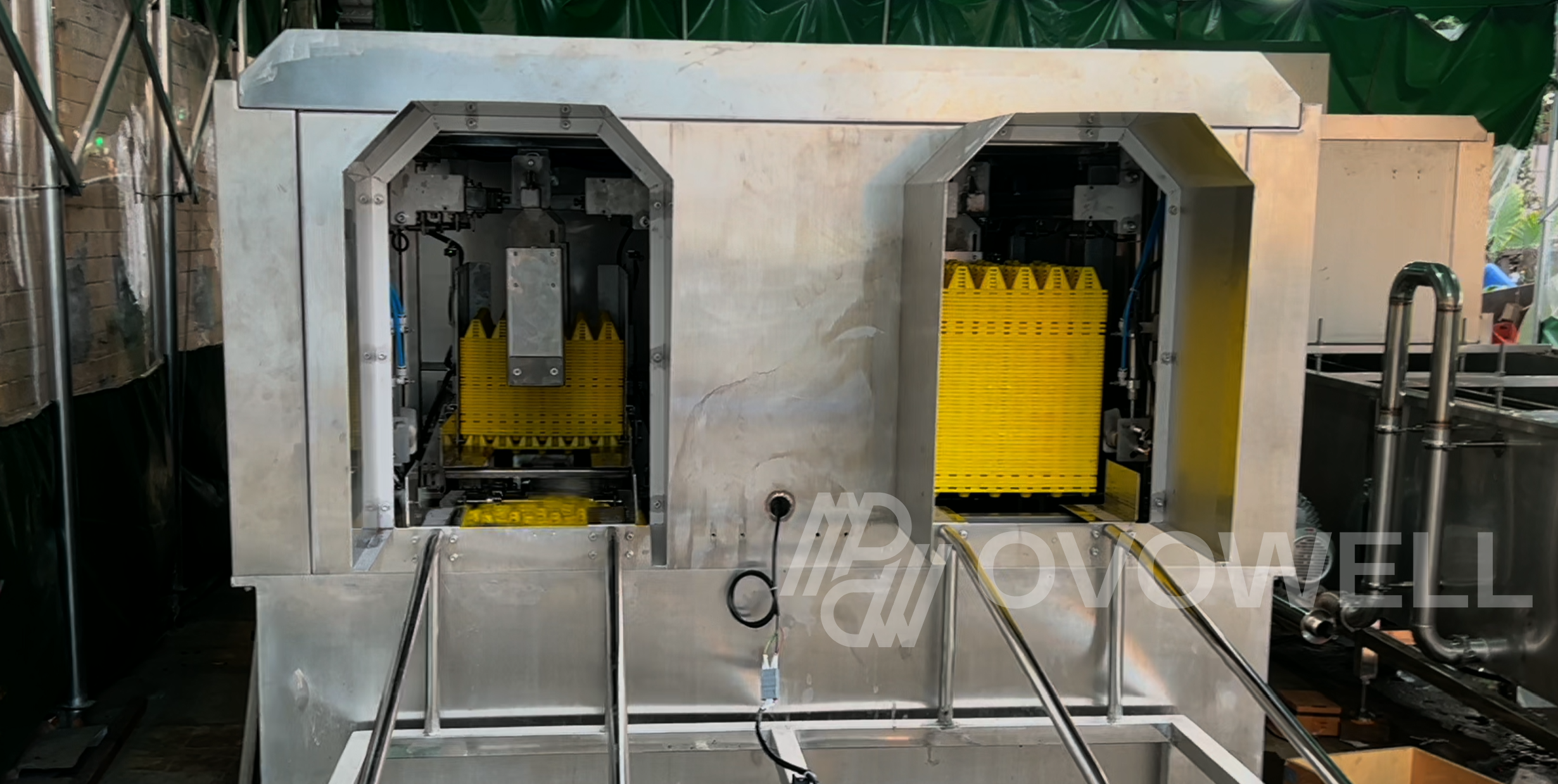

Clean trays are collected into stacks for recirculation or storage.
Confirm stack height and transfer method.
The system can be configured as a plastic egg tray washer based on tray dimensions, cell count, return condition and target throughput.
| Selection point | Information to provide | Configuration impact |
|---|---|---|
| Tray format | Material, outside dimensions, cell count and sample photos | Guides, conveyor and spray arrangement |
| Return condition | Typical residue, dried contamination and time before washing | Need for pre-soaking and washing stages |
| Target output | Trays per hour and peak daily return volume | Line speed and required operating time |
| Utilities | 380V supply, water, drainage and available installation area | Installation and operating layout |
| Automation | Required destacking, dewatering, stacking and conveyor interfaces | Line scope and transfer points |
Up to 5,000 trays per hour, subject to tray format, return condition and project configuration.
304 stainless steel construction with a Siemens PLC control system.
380V electrical supply. Water, drainage and installation conditions must be confirmed for the project.
12-month warranty. CE certification can be provided based on project requirements.
An egg washer cleans eggs. An egg tray washer cleans the reusable plastic trays that carry eggs. OVOWELL configures this machine for plastic egg trays rather than for washing eggs themselves.
Yes. An optional pre-soak module with bubble agitation can be reviewed for trays with more persistent residue. Send tray photos and describe the return condition before configuration.
The current line can include automatic destacking before washing and automatic stacking after rinsing and dewatering. Confirm the tray stack and downstream transfer method.
Start with the number of reusable trays that return during the busiest hour and the available operating time. The reference capacity is up to 5,000 trays per hour, subject to tray and project conditions.
Send tray material, dimensions, cell count, photos, target throughput, soiling level, power, water, drainage, installation area and required automation stages.
Match tray cell count, dimensions and stacking format to the circulation and washing flow.
Review tray washing, egg counting, separation and labeling by production step.
Fitted Washing Line
Send tray material and dimensions, cell count, soiling level, target output, and water and drainage conditions. OVOWELL can review whether the washer fits your tray circulation workflow before quotation.
