Real-Time Count
The overview shows the current selected-house count together with the combined total.
For egg farms that need live production counts and separate house records from an existing rod or belt conveyor.
AI Egg Counting

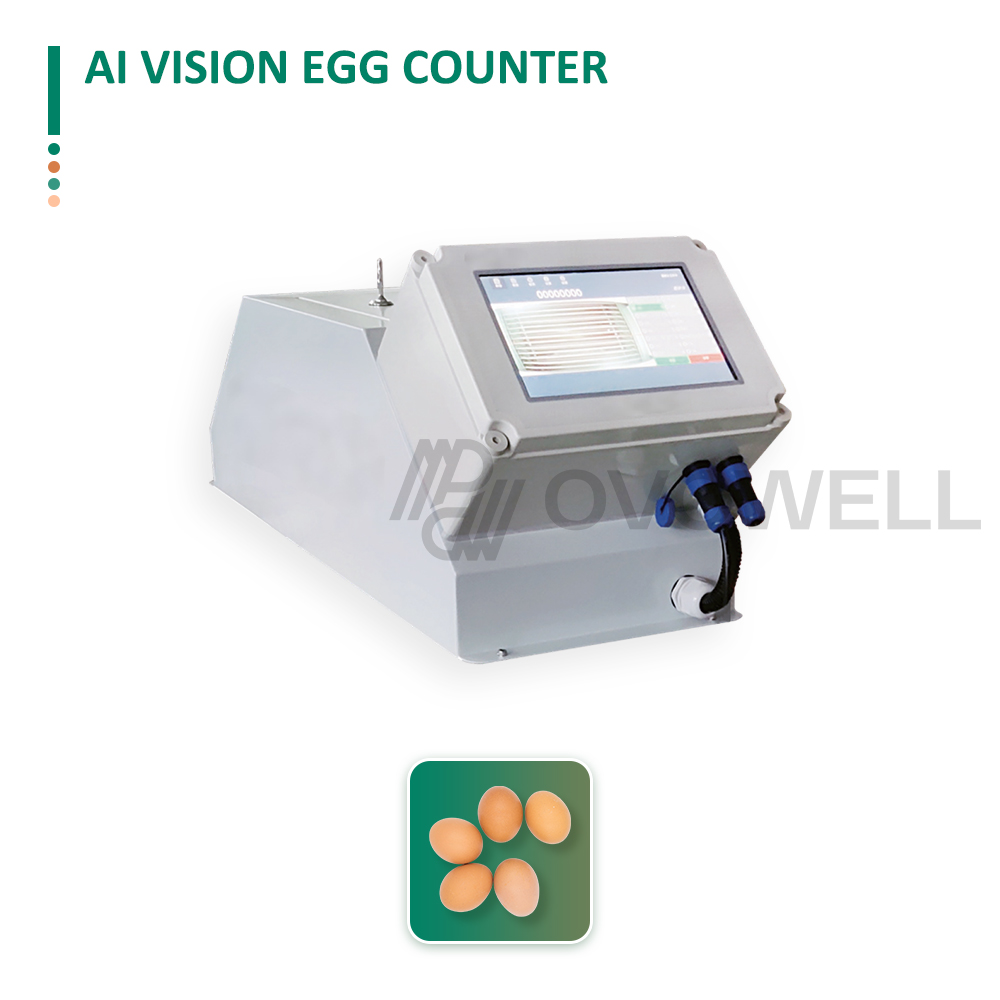

The AICE7501 AI vision egg counter combines camera-based recognition, edge computing, a 10.1-inch touchscreen and IoT communication for poultry farms that need real-time counts and separate records for multiple houses. Installation is reviewed against conveyor type, speed, egg movement and camera coverage.
The counter observes eggs as they pass below the camera, processes the image locally and assigns the count to the selected house record.
The camera is positioned so the full active conveyor width remains visible and eggs pass below without obstruction.
Confirm conveyor width, mounting point and available height.
AI vision compares egg image features while edge computing processes the count at the machine.
Keep the camera clean and the view free of debris.
The interface displays the selected house count, total count and real-time eggs per minute.
Select the correct house before the counting period starts.
Twenty house selections allow current counts and historical records to be kept separately.
Confirm the farm's house naming and record routine.
Communication settings include baud rate, address, IP, subnet mask and gateway for project integration.
Confirm the required user endpoint and data interface.
Eggs should avoid rolling as they pass below the counter. Camera position, a clear field of view and cleaning after dust buildup are important to counting performance.
| Selection point | Information to provide | Why it matters |
|---|---|---|
| Conveyor | Rod or belt type, active width, photos and direction of travel | Camera coverage and mounting arrangement |
| Line speed | Normal and peak conveyor speed | Fit within the 0-8 m/min reference range |
| Egg flow | Eggs per minute, spacing, rolling and overlapping conditions | Counting stability and installation review |
| Farm records | Number of houses and required save/clear schedule | House setup and operator workflow |
| Data connection | Local-only use or required IoT/network endpoint | Communication settings and integration scope |
| Environment | Temperature, dust, washdown and mounting location | Protection of the camera and control box |
| Parameter | Reference value |
|---|---|
| Model | AICE7501 |
| Counting method | AI vision with edge computing |
| Reference accuracy | 99.7% |
| Compatible conveyor types | Rod conveyors and belt conveyors |
| Conveyor speed | 0-8 m/min |
| Display | 10.1-inch LCD touchscreen |
| House records | 20 independent house selections |
| Languages | Chinese, English and Russian |
| Communication | Built-in IoT communication; project interface to be confirmed |
| Power supply | 220V ±10%, 50/60Hz |
| Operating temperature | 0-50°C |
| Dimensions | 950 x 320 x 380 mm |
The overview shows the current selected-house count together with the combined total.
Saved records can be reviewed by house, with separate navigation for houses 1-10 and 11-20.
The update time can be set for automatic saving and clearing according to the farm's recording routine.
The settings screen displays throughput, CPU/GPU temperature, frame rate, date, time and software version.
Yes. The AICE7501 manual identifies rod and belt conveyors as compatible types. Camera mounting and full conveyor coverage still need to be confirmed from photos and dimensions.
The vision system is designed to recognize eggs across normal variations in size, color and orientation. Installation conditions remain important: eggs should stay visible, the camera should be clean and eggs should avoid rolling under the counter.
Yes. The interface includes 20 house selections, separate current counts and historical records. Operators select the correct house before counting.
No. This page describes an egg counting system. Egg grading, crack detection, weighing and sorting are separate functions unless a broader line is specifically configured.
Send conveyor type, width, speed, egg flow, house count, installation photos, power supply, environment and required data connection.
