Carton Infeed
Operators or an upstream conveyor place cartons into the selected feeding lanes. Guides and lane spacing are matched to carton samples.
For plastic egg cartons or boxes that need repeatable top-surface or top-corner label application within an egg handling line.
Egg Carton Labeling

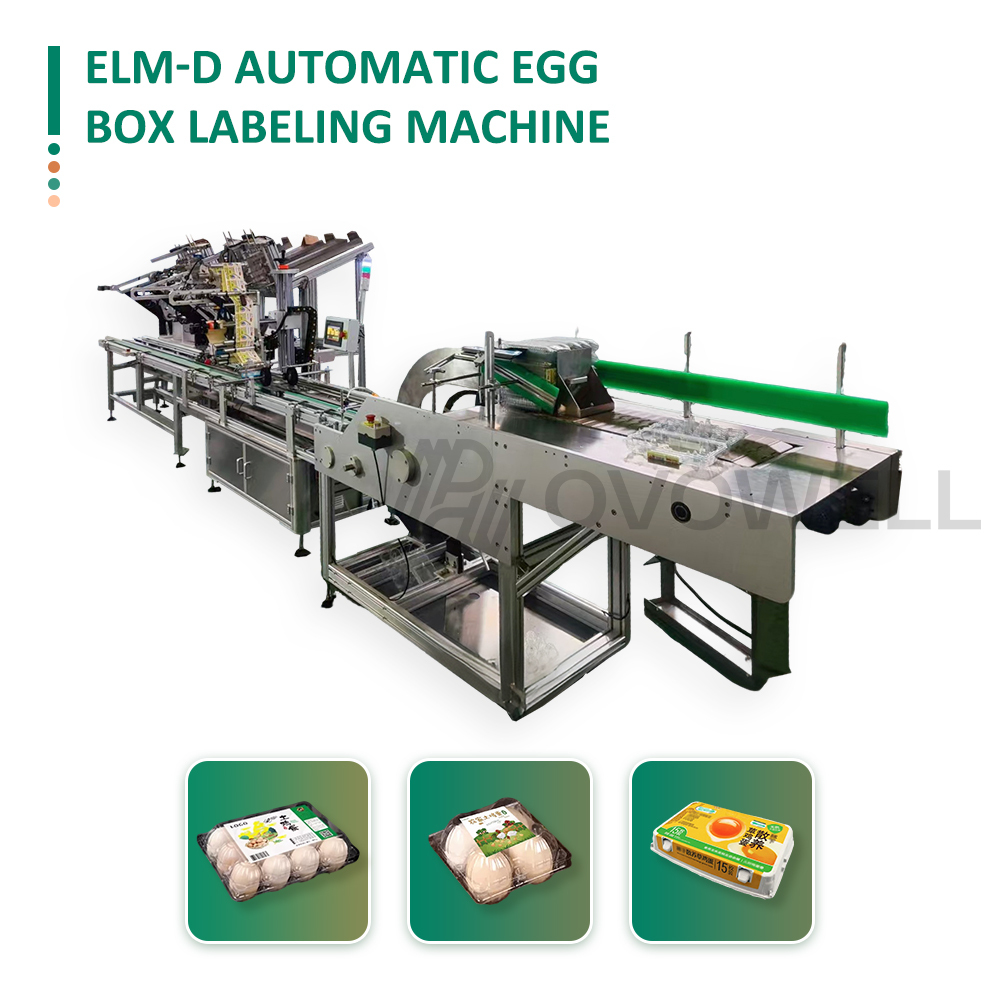

The OVOWELL automatic egg carton labeling machine applies self-adhesive labels to plastic egg cartons or boxes in a controlled conveyor workflow. Top-surface and top-corner labeling can be reviewed with the carton format, label size, channel count and line speed. Final output, accuracy and carton handling depend on the selected configuration and samples.
Cartons enter the machine on a conveyor, are detected at the labeling station and receive a label at the defined position. A checking sensor and brush or roller pressing stage help keep the label attached before the carton is collected.
Operators or an upstream conveyor place cartons into the selected feeding lanes. Guides and lane spacing are matched to carton samples.
A servo-driven labeling head feeds the self-adhesive label and applies it to the top surface or top corner defined in the order review.
Carton and label sensors monitor the trigger point and label gap. An alarm or stop condition can be reviewed for label loss or a detected fault.
A brush or pressing cylinder helps secure the label on the carton. The finished cartons continue to collection or the next packing step.
Carton geometry determines whether a top label, top-corner label or another application arrangement can run reliably. Send physical samples or dimensioned drawings before finalizing the label head and guides.
Provide outside dimensions, lid shape, material, egg count and the areas that can receive a label.
Confirm whether multiple carton sizes must run on one line.
Share label width and length, roll direction, liner, adhesive, opacity and the required gap between labels.
Reference label range: 10–150 mm wide and 10–300 mm long, subject to testing.
Choose top-surface or top-corner application and mark the target position on a carton sample.
Allow space for carton seams, ribs, hinges and changing surfaces.
A date, batch or other printer can be reviewed as an optional module when variable information is required.
The labeling machine itself does not imply a printing function unless the printer is included in the confirmed scope.
Send carton samples, dimensions, egg count and the lid or corner area to be labeled.
Check that the carton surface is clean, dry and suitable for the selected adhesive.
Provide label dimensions, roll details, adhesive type, artwork direction and any variable-data requirement.
Confirm whether the label is opaque, transparent or supplied with a special liner.
Choose the required feeding channel count, operating direction, carton spacing and upstream transfer method.
Keep the reference output tied to the final carton, label and lane test.
Reserve space for carton infeed, label inspection, pressing, collection and the next packing or case-packing operation.
Share conveyor height, line speed and available floor space.
Run the selected carton and label through the complete route, then record placement, adhesion, alarms and changeover steps.
Use the approved sample and test conditions as the reference for acceptance.
The four-channel output and ±1.0 mm accuracy shown above are reference values for configuration review. Keep the product page model-neutral; confirm channel mapping only when adding a model-specific project specification.
The following values describe the current reference configuration and are not a substitute for the final order sheet.
| Item | Reference information | Project check |
|---|---|---|
| Application | Automatic labeling of plastic egg cartons or boxes | Confirm carton sample and surface |
| Feeding | Four-channel reference configuration | Confirm the channel count for a specific line |
| Output | 3,600–4,800 cartons/hour reference | Run a test with the selected carton and label |
| Label placement | Top surface or top corner | Mark the position on an approved sample |
| Label size | 10–150 mm wide; 10–300 mm long reference range | Confirm roll, liner and adhesive details |
| Accuracy | ±1.0 mm reference | Confirm test method and carton condition |
| Controls | PLC, touchscreen interface, carton/label sensors and servo label drive | Confirm interface and language requirement |
| Printer | Optional printer module by project scope | Confirm data, ink/air and mounting requirements |
| Construction | Stainless steel and anodized aluminum reference build | Confirm final material and washdown conditions |
Label placement and adhesion should be reviewed with the actual carton, label roll and line speed. A short trial exposes surface, guide and changeover issues before a production release.
Approve the carton, label artwork, placement and adhesive before setting the machine as the production reference.
Observe carton spacing, lane balance and output at the required operating speed rather than relying on a nominal number.
Confirm the response to missing labels, broken labels, carton gaps and sensor alarms with the operator team.
Record guide, label-head and recipe adjustments when more than one carton format will run on the line.
A labeler does not guarantee adhesion, packaging compliance or print quality by itself. Those outcomes depend on the carton surface, adhesive, label design, optional printer, line settings and acceptance test.
It is intended for plastic egg cartons or boxes when the carton surface, label and placement are confirmed through samples. Other packages require a separate compatibility review.
Top-surface and top-corner labeling can be reviewed. The final label head, guides and pressing arrangement depend on the carton shape and target position.
A four-channel reference configuration is listed at 3,600–4,800 cartons per hour. Final output depends on carton size, label dimensions, spacing, operator loading and the tested setup.
The current reference range is 10–150 mm wide and 10–300 mm long. Confirm the actual roll, liner, adhesive and gap before ordering.
An optional printer can be reviewed for variable information. Printing requires a confirmed printer type, data source, mounting arrangement and suitable carton surface.
Carton and label sensors can trigger the labeling cycle and monitor the label gap or position. Alarm behavior and acceptance limits should be set during the line trial.
Send carton samples or drawings, label dimensions and material, target position, cartons per hour, lane count, conveyor information, printer needs, utilities and available space.
