Mobile Positioning
Remote travel helps the operator move the machine through the planned cleaning route and adjust its position without standing in the spray path.
For planned empty-house cleaning of layer and broiler cage rows between poultry-house cycles.
Empty-House Cage Cleaning

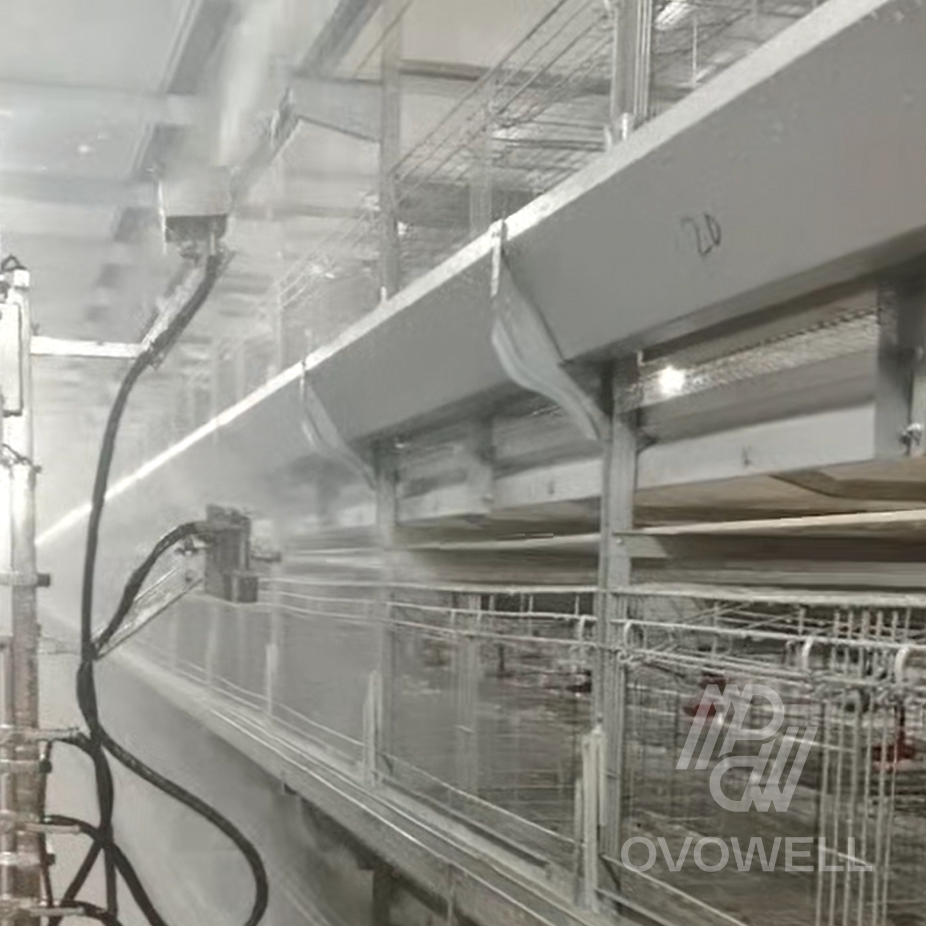

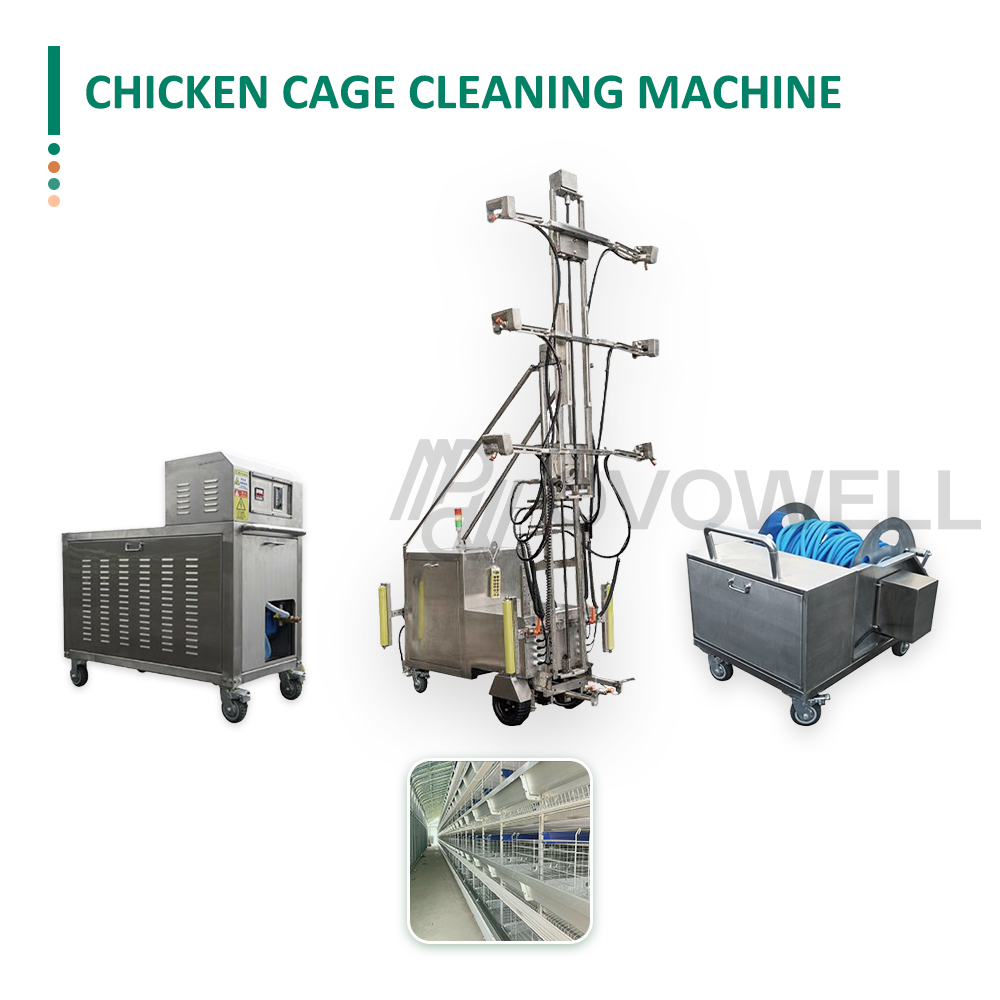

The OVOWELL mobile chicken cage cleaning machine combines remote travel, an adjustable boom and directed spray for planned washdowns between poultry-house cycles. The cleaning route can be organized around cage rows, troughs, manure-belt areas and floor zones from one mobile platform. Final reach, wash settings and site output depend on cage geometry, house access, soil load, water conditions and drainage.
The machine is intended for repeatable cleaning preparation after a poultry-house cycle. It helps position the wash equipment and direct water where manual spraying is difficult, while the site team remains responsible for preparation, inspection and re-entry procedures.
Remote travel helps the operator move the machine through the planned cleaning route and adjust its position without standing in the spray path.
An adjustable boom and directed nozzles can be reviewed against cage tiers, troughs, frames and manure-belt areas.
Ground-level spray can be included in the route where floor drainage, runoff collection and surface protection have been checked.
Travel and wash functions are operated from a remote control arrangement selected for the house layout and safe operator position.
Remove birds, feed and loose materials, then isolate the house services required by the site cleaning procedure.
Routine use of this page assumes the house is empty; live-bird use requires separate site approval.
Record cage tiers, aisle width, house length, turning points, floor transitions and drainage locations.
Confirm that the machine can enter, turn, reach the work zone and leave without blocking an emergency route.
Place the machine at the selected starting point and review boom height, angle, nozzle direction and operator visibility.
Keep the wash path clear of people, loose cables and unprotected electrical equipment.
Work through the approved cage, trough and manure-belt sequence using the pressure and flow selected for the actual surfaces.
Start with a controlled test area before moving to the full house route.
Use the floor-rinse route where required and keep runoff within the planned drainage and collection system.
Adjust the sequence when residue, water pooling or surface damage is observed.
Inspect cage contact points, troughs, belts, floors and hard-to-reach areas before the next flock or production cycle.
Complete the site drying, sanitation and re-entry procedure independently of the machine.
The configuration below is a review framework rather than a universal specification. The final model sheet must match one cage layout, one utility package and one approved cleaning route.
| Configuration item | Review basis | Confirm for your project |
|---|---|---|
| Cage scope | Layer or broiler cage rows, tier arrangement and access route | Cage type, tier count, height, aisle width and house drawings |
| Reach and positioning | Mobile travel with an adjustable boom and selected spray angle | Required reach, turning space, floor transitions and operator position |
| Spray functions | Cage-zone spray, ground spray and optional assisted spray route | Nozzle coverage, pressure level, flow, surface protection and test area |
| Control arrangement | Remote travel and wash controls selected for the house | Control distance, visibility, emergency stop and communication method |
| Utilities | Water supply, pump package, power or battery arrangement and drainage | Voltage, water pressure, flow, hose route, charging and runoff collection |
| Materials and service | Construction and exposed parts matched to wet, dirty operating conditions | Approved material grade, filter access, cleaning points and spare parts |
Pressure, flow, remote range, battery duration, lift height, pump power and cage-tier limits must be confirmed against the ordered model. They are intentionally not presented as universal values on this page.
Safe operation depends on the complete machine, the house layout, the water and power connections, and the site’s written cleaning procedure.
Routine cleaning should be planned after birds, feed and loose materials are removed. Do not treat this page as approval for washing around live birds.
Keep people outside the travel, boom and spray zones. Check visibility, barriers, emergency stop and communication before each route.
Match pressure and nozzle distance to cage, belt, trough and floor materials. Protect electrical parts and stop when surfaces or runoff behave unexpectedly.
Isolate power, water and stored pressure before cleaning filters, changing nozzles, entering the machine area or carrying out maintenance.
The machine supports a planned washing route. It does not by itself establish a validated disinfection, biosecurity or flock-reentry result; the site must define and verify those procedures.
The routine use case on this page is planned empty-house cleaning between cycles. Any live-bird use would require a separate site risk assessment, approval and operating procedure.
The route can be planned around cage frames, troughs, manure-belt areas and floors. Boom reach, spray angle and nozzle coverage must be checked against the actual cage geometry.
It can reduce manual positioning and spraying, but the site still needs preparation, targeted detail work, inspection, drainage control and sanitation or re-entry procedures.
Pressure and flow are selected by the ordered model, cage materials, soil load, nozzle arrangement and available utilities. Confirm these values before quotation and installation.
Multi-tier cage projects can be reviewed when the tier height, aisle width, boom reach and spray coverage are known. No single tier limit should be assumed without the final model sheet.
Remote range depends on the control arrangement, house layout and approved model. Share the house length, obstructions and desired operator position for a practical review.
Send cage and house photos, dimensions, drawings, contamination by zone, cleaning schedule, water and power details, drainage plan and the required safety or re-entry procedure.
Compare poultry washing equipment by the item, contamination level, target volume and site utilities.
Review a staged washer for reusable plastic crates and turnover boxes.
Compare other reusable-item cleaning routes for pallets and meat trolleys.
Send the cage-house layout and utility conditions for a configuration review.
Poultry-House Cleaning Review
Send cage photos and dimensions, tier height, aisle width, house layout, contamination, cleaning window, water, power, drainage and operator-safety requirements. OVOWELL can review the route, reach and utility interfaces before quotation.
